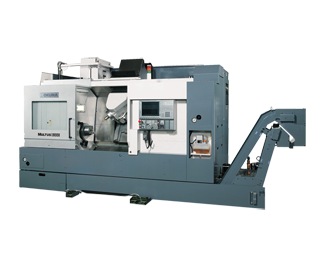

| MULTUS B 300 |
|
 |
On Sled Turning Diameter |
: |
630 mm |
Maximum Turning Diameter |
: |
630 mm |
Maximum Turning Height |
: |
900 mm |
On Sled Turning Diameter |
: |
630 mm |
Spindle speed |
. |
3800 rev/min |
Spindle Speed Level Number |
: |
2 Automatic Levels |
Main Motor Power |
: |
22 kw |
ATC Motor Power |
: |
16 kw |
ATC Set Number |
: |
40 Sets |
Mirror |
: |
10" Hydraulic |
Numerical Control Unit |
: |
OSP 200-L |
Axes Number |
: |
5 Axes |

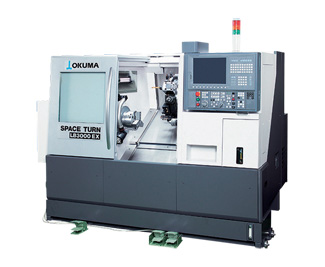

| LB Series LB-300 M |
 |
|
 |
Maximum Turning Diameter |
: |
340 mm |
| Maximum Turning Height |
: |
500 mm |
| Spindle motor power |
: |
Vac 15/11 kw |
| Spindle Speed |
: |
45/4500 d/dak |
| Revolver Index Speed |
. |
0,1 sn/istasyon |
| Station Number |
: |
12 |
| Numerical Control Unit |
: |
OKUMA OSP-E 100 L |
| Mirror |
: |
8" Hydraulic |
| Sled System |
: |
Hydrostatical |
| Lathe Weight |
: |
4300 kg |
| Axis Number |
: |
3 ( C Eksenli ) |
| |
|
|
| LB Series LB-200 M |
|
|
 |
Maximum Turning Diameter |
: |
270 mm |
| Maximum Turning Height |
: |
300 mm |
| Spindle motor power |
: |
kw 7,5 Vac |
| Spindle Speed |
: |
75-6000 d/dak |
| Revolver Index Speed |
. |
0,1 sec/station |
| Station Number |
: |
12 |
| Numerical Control Unit |
: |
OKUMA OSP 100 L |
| Mirror |
: |
6" Hidrolik |
| Electricity Used |
: |
15 kw |
| Motor Power |
: |
17 kw |
| Axis Number |
: |
3 (C axis) |
| |
|
|

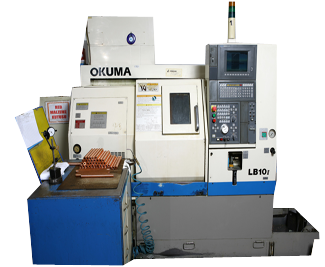

| LB SeriesLB-10 II |
|
|
 |
Maximum Turning Diameter |
: |
170 mm |
| Maximum Turning Height |
: |
300 mm |
| Spindle motor power |
: |
kw 7,5 Vac |
| Spindle Speed |
: |
50-6000 d/dak |
| Revolver Index Speed |
. |
0,2 sn/istasyon |
| Numerical Control Unit |
: |
OKUMA OSP700 L |
| Mirror |
: |
6" Hidrolik |
| Electricity Used |
: |
15 kw |
| Motor Power |
: |
17 kw |
| |
|
|
| |
|
|
| |
|
|
|
